SAUSAGE HIGH SPEED LINKING AND HANGING SYSTEM FOR ARTIFICIAL CASING

　

HITEC M-3X / HITEC M-3XL

The features of a required Sausage Linking is high spead production, accuracy of stuffing weight, reduction of problems during stuffing, easy product changeover, high durability, simple to repair when problems occur, are requirements of the sausage linker.
To upgrade these features, Hitec's next suggestion is to control the pump drive by the servo motor.

HITEC M-3X MOVIE [ENGLISH]

HITEC M-3X MOVIE [SPANISH]

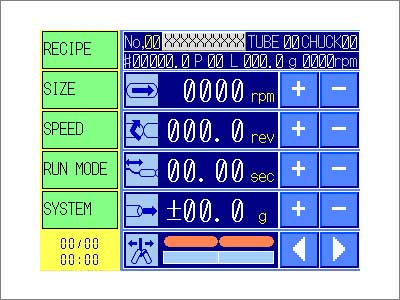

HITEC's electrical control choices All your necessary information displayed at a moment notice,quick and easy.	Heavy Duty metering pump HITEC has achieved to make heavy duty metering pumps by stronger drive shaft, stronger idler shaft and more durable bearings. Our design offers excellent long term weight control with less necessary overhauls.

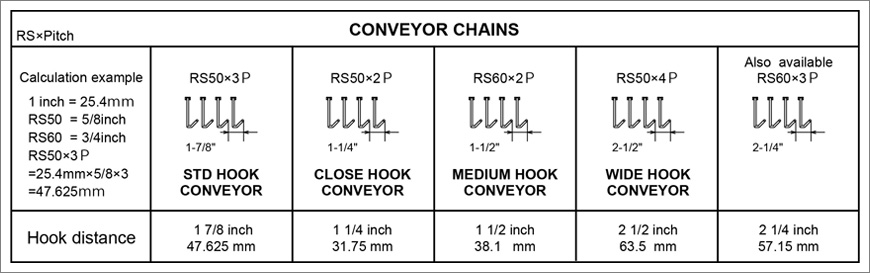

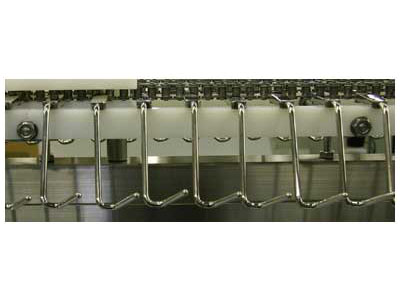

Stationary Chute By using the stationary chute, no more products will be jammed at the chute section. Due to HITEC’s innovation with electoric conveyors, a looping horn is not needed. Sausages are caught by the hooks. Several other features enable us to maximize output and hanging ability.	Maintenance free no oil twisting system A simple motor with timing belt means fewer components and extended parts life. When necessary,replacing parts is done quickly and easily without the need to remove the entire twister assembly. No one can match the performance of this HITEC design.
Flapper style casing feed mechanizm The HITEC M-3X features HITEC's unparallel hopper design that eliminates the need for a casing clamp. The design is quick and easy operating and reliable feeding of casings.	Linking Chain / Linking Belt Linking Chain : Available in various lengths from 3 pitches (28.56 mm), as well as half pitch (4.76 mm). Also capable of straight stuffing (no twist). Linking Belt : Pinchers that are attached on the linking belt fix the product length. Customers can choose the product length from 2 cm and in units of 0.5 cm.

■ SPECIFICATION

	HITEC M-3X	HITEC M-3XL
Production Rate	Max. 7,500 lbs./hr (3,400 kg/hr)

※The figures shown above may change depending on the product,plant condition,local requirements for power and/or other respective matters.

Product Size	3 pitches (1 1/8 in, 28.4 mm) through 32 pitches (12 in, 305 mm) or more

※Longer sizes can be applied with HITEC'S optional unit.

Casing Size	Cellulose casing code 13 through 36.
Casing Stick Length	Max 16 1/2 in (419 mm) cellulose casing	Max 21 1/2 in (546 mm) cellulose casing

■ MACHINE SIZE

			HITEC M-3X	HITEC M-3XL
Height			77 7/8 in (1,976 mm)
Width			30 in (763 mm)
Length	Linker		92 1/4 in (2,344 mm)	107 3/8 in (2,726 mm)
	Conveyor	8feet(2.4 m)	119 1/2 in (3,034 mm)	119 1/2 in (3,034 mm)
		10feet(3 m)	143 7/8 in (3,654 mm)	143 7/8 in (3,654 mm)
	Total	8feet(2.4 m)	211 3/4 in (5,378 mm)	226 7/8 in (5,760 mm)
		10feet(3 m)	236 1/8 in (5,988 mm)	251 1/8 in (6,380 mm)
Weight			Approx. 1,430 lbs. (650 kg)	Approx. 1,450 lbs. (660 kg)
Stuffing Tube Height			50 in (1,270 mm)

■ REQUIREMENTS

		HITEC M-3X	HITEC M-3XL
Power Requirements		Three-Phase 8.85 kw
Pneumatical Requirements	Quality	clean and dry
	Pressure	75 psi (520 kPA)
	Consumption	79 in3 (1,300 cm3) per cycle	96 in3 (1,560 cm3) per cycle

※ Specifications and equipment are subject change without any obligation on the part of manufacturer.
※ The above production rate is subject to change due to the conditions such as production item, factory and other conditions.

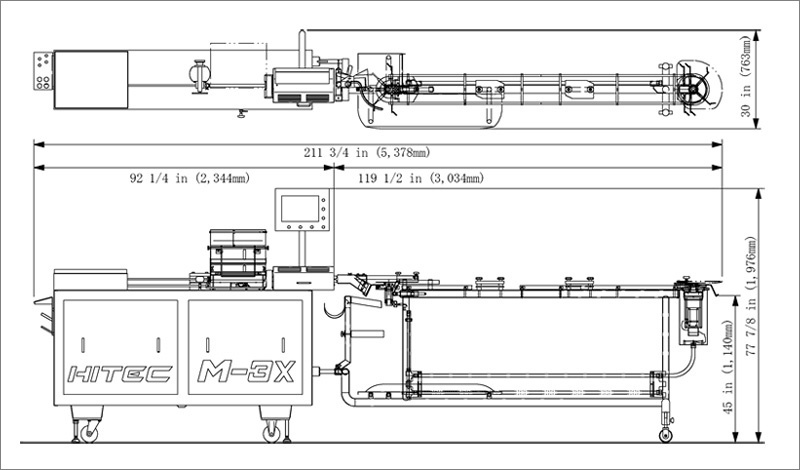

■ LAYOUT

　　　　　　　　　　　　　　　　　　

※ Layout dimension includes dimension of optional equipment.
